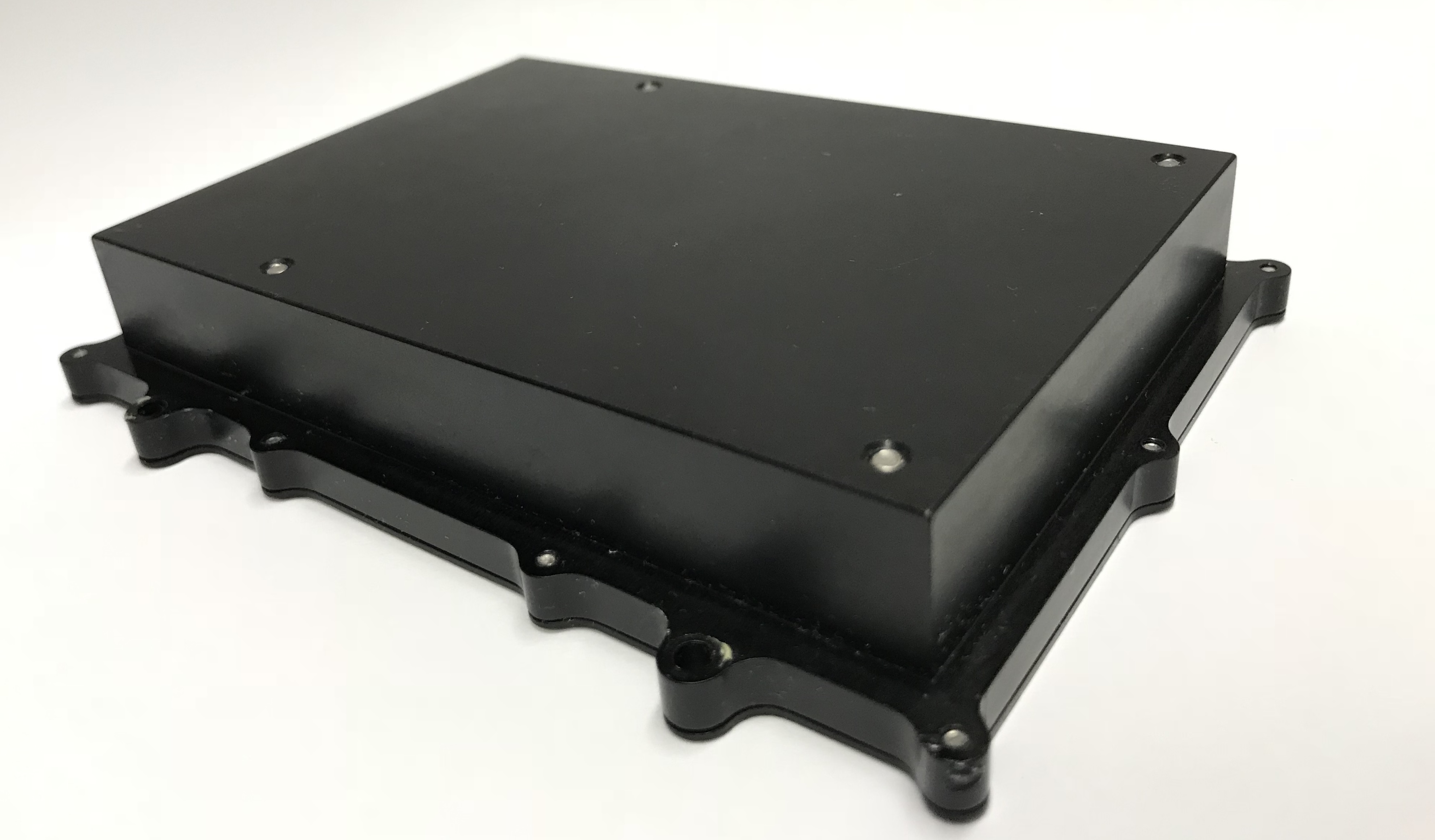

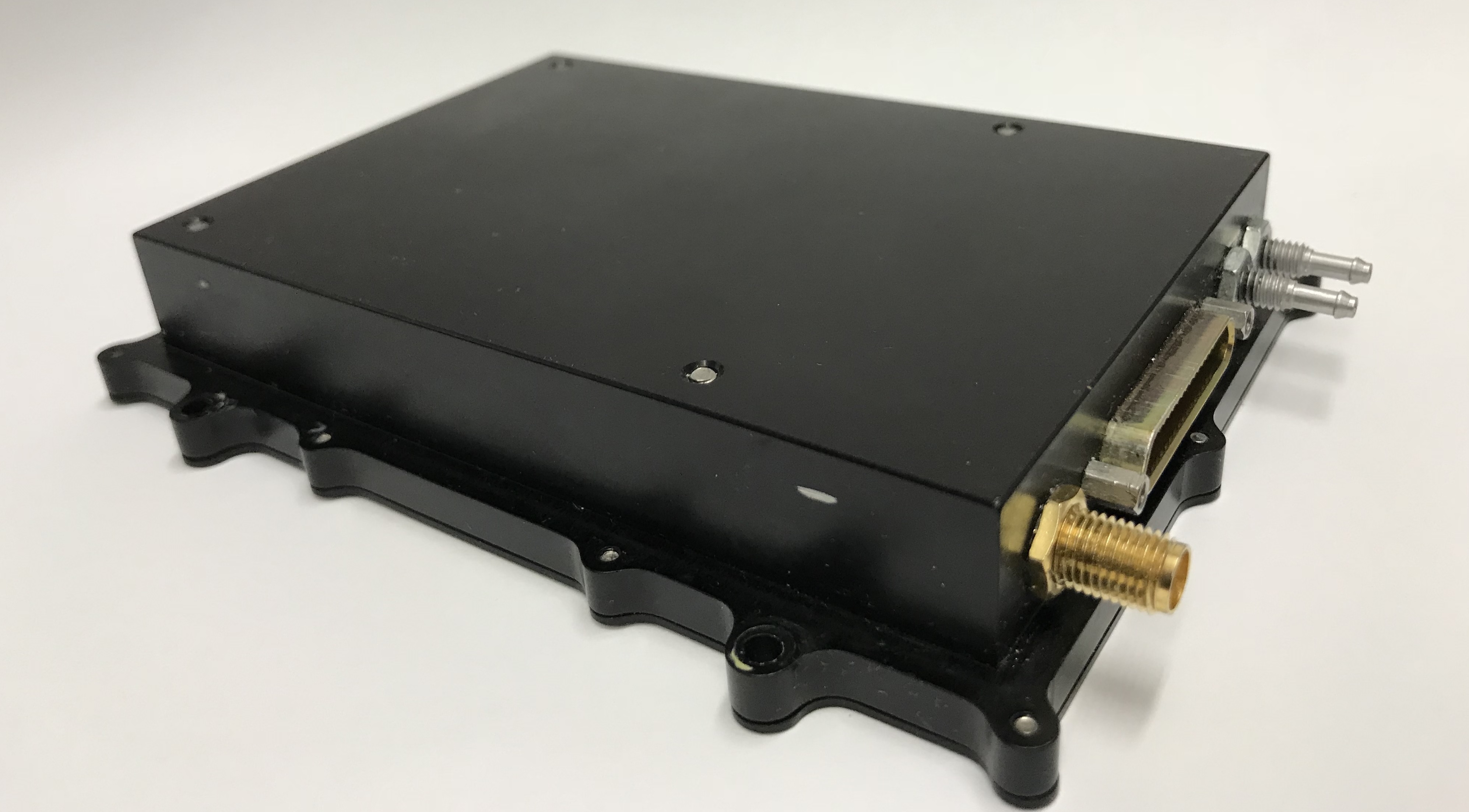

DV GROUP is pleased to present the following FCC:

The controller unit is a highly configurable, multiplexing switch for servo command signals. The FCC can be used to control RC servo or other AV servo devices. Other AV systems might appear to be smaller and weigh less, but the FCC advanced programmable controller includes the ability to drive up to 6 servos, has 8 analog inputs for measurement application (battery power, altitude, airspeed, etc.), real-time data recording - all of this in a single integrated package.

Platform Technical Specifications:

Dimensions
Width – not more than 65mm
Length – not more than 130mm
Thickness – not more than 18 mm (board)
Weight – not more than 160g

Power
Vin – 9..36V
Vout – 5V X 3, 12V X 2
Sensor supply +5V 30ma max
GPS supply +5V 25ma max

PCB Specs
PCB is 8 layers
CPU is NXP MC56F8367
IMU is Vectornav VN-200

I/O
Analog in – 8 channel 12 bit
Digital out – 8 channels
PWM out - 4 channels
PWM in – 2 channel

Communication
RS232 / RS422 - 7 channels
CAN - 1 channel

Temperature
MAX +50C operational / +70C storage
Temperature MIN -20C operational / -40C storage

To get more information and quotes, please contact us directly.
